Fiberglass Utility Pole: An Insight into Their Importance and Usage

Fiberglass utility poles are a type of material made by binding glass fibers with resin. Due to their unique qualities such as corrosion resistance and light weight, their use has gradually increased.
In this article, you can find some basic information about fiberglass utility poles. Whether you want to learn about their development process, understand their advantages and limitations, or know about their applications, all the information you need is right here.
Continue reading to learn more.

What is A Fiberglass Utility Pole?

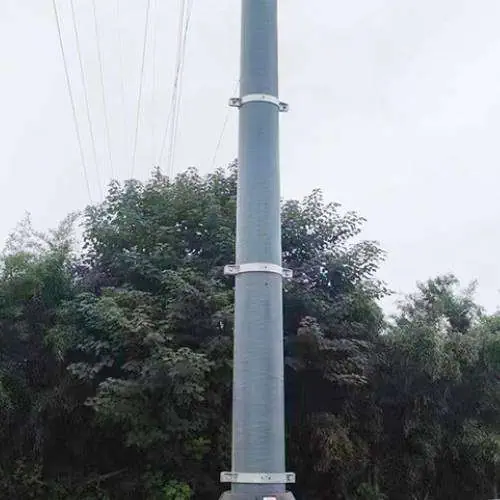

Fiberglass Utility Pole

A fiberglass utility pole, also known as a fiberglass electric pole, fiberglass distribution pole, or composite utility pole, is a structure used to support overhead power lines and various other public utilities such as cables, fiber optics, transformers, and street lights. Unlike traditional utility poles made from wood, metal, or concrete, fiberglass utility poles are made from fiber-reinforced polymer (FRP) composites, typically consisting of fiberglass reinforced fibers and a polymer resin matrix.

How Did Fiberglass Utility Poles Originate?

The history of fiberglass utility poles, or composite material poles, traces back to the early 1960s. The pioneering application of composite material poles as transmission structures occurred on the island of Maui, Hawaii, where fiberglass poles were installed to replace wooden and steel poles. The main reason for this replacement was the island’s warm, humid, and salty air, which led to the degradation of wooden poles and corrosion of steel poles. Over the decades, the utility industry has recognized the advantages of composite materials and increasingly adopted fiberglass utility poles as a reliable and efficient alternative to traditional pole materials.

What are the Manufacturing Techniques for Fiberglass Utility Poles?

Pultrusion Process

The pultrusion process is a continuous manufacturing method used to produce profiles with a constant cross-section, including fiberglass utility poles. This process involves pulling rovings and mat forms of fiberglass reinforcement materials through a resin bath to achieve resin saturation. The saturated reinforcing material is then fed into a heated mold. As the profile exits the mold, it solidifies into a solid state, forming the desired cross-section. This method efficiently produces long composite materials with consistent performance and dimensions.

Filament Winding Process

Filament winding is another method for producing fiberglass utility poles. In this process, continuous fiberglass rovings are wound around a rotating mandrel. The fibers are coated with resin either before being wound onto the mandrel or during the winding process. The resin is then cured, typically by heating, to harden the composite material into a rigid structure. After curing, the mandrel is removed, leaving a hollow cylindrical pole with high strength and durability. This method is particularly suited for producing poles with specific strength and flexibility characteristics.

Post-Manufacturing Treatments

  • Surface Treatment: After the primary manufacturing processes, the utility poles may undergo surface treatments such as sanding to smooth the surface, applying a mixture of resin and wax, or high-performance paints or powder coatings to enhance UV protection. These ensure that the pole surfaces are aesthetically pleasing and can withstand environmental factors.
  • Pre-drilled Holes and Attachments: Poles can be pre-drilled according to customer specifications to facilitate equipment installation. Steps for climbing and other attachments can also be specified and added. This customization allows the utility poles to be immediately operational upon delivery.
  • Quality Inspection: The utility poles undergo visual inspection according to standards such as ASTM D4385 to ensure they meet specified specifications and quality standards.

What Are the Different Types of Fiberglass Utility Poles?

Based on Application

  • Distribution Poles: These poles are used in local low-voltage electrical grids for power distribution, comparable to ANSI O5.1 wooden poles. They are designed to carry power lines, transformers, and other necessary equipment to distribute electricity from substations to users.
  • Transmission Poles: These poles are used for long-distance high-voltage power transmission. They range from class 1 to H6, designed to withstand higher loads and stresses associated with high-voltage transmission.
  • Light Poles: These poles are specifically designed for lighting applications and can support street lights and other lighting fixtures. They are built to withstand environmental conditions while providing the necessary support for lighting infrastructure.
  • High Mast Poles: These taller poles are designed for applications requiring high-intensity lighting over large areas, such as parking lots or sports fields. They can be made from fiberglass to enhance durability and corrosion resistance.

Based on Manufacturing Process

  • Pultruded Composite Poles: These poles are manufactured using the pultrusion process, where fibers are pulled through a resin bath and then through a heated mold to form the pole. This process produces poles with consistent cross-sections and a high strength-to-weight ratio.
  • Filament Wound Poles: A variation of the manufacturing process that combines elements of pultrusion and filament winding. This method optimizes fiber orientation to meet specific strength and deflection targets, particularly suitable for applications such as 5G utility poles.

What Are the Advantages of Fiberglass Utility Poles?

Fiberglass utility poles, also known as composite material poles, offer several advantages:

  1. Lightweight: Fiberglass poles are much lighter than traditional materials, making them easier to transport and install. They weigh about 20% of steel and 40% of treated wood.
  2. Strength: Despite their lightweight, they are highly strong and can be customized to single or doublepole configurations and conical or non-conical shapes according to utility specifications.
  3. Non-conductive: Fiberglass does not conduct electricity, enhancing safety for electrical workers and reducing the risk of electrical accidents.
  4. Corrosion Resistance: They exhibit anti-corrosion, anti-rot, UV-resistant, water-resistant, and pest-resistant properties, which help extend their lifespan and reduce maintenance needs.
  5. Durability: Unlike wooden utility poles, fiberglass poles do not lose strength over time. Depending on the manufacturing process, the expected lifespan of fiberglass utility poles ranges from 70 to 100 years.
  6. Environmental Resistance: They can withstand extreme weather conditions such as ice storms, hurricanes, and wildfires, and remain flexible and intact under temperature fluctuations.
  7. Chemical Neutrality: Unlike wooden poles, which may require chemical treatments, fiberglass poles are chemically neutral and environmentally inert, preventing chemical leaching into ecosystems.
  8. Impact Resistance: Fiberglass poles are impact-resistant, able to withstand physical stress without deforming or breaking.
  9. Deterrence to Wildlife: The smooth surface of composite poles prevents creatures like woodpeckers from gripping, and animals such as squirrels cannot climb these poles, thus reducing wildlife-induced disturbances.
  10. Safety: The hollow nature of composite utility poles allows for internal installation of wires, reducing the risk of copper theft and providing a safe conduit for power and communication cables.
  11. Versatility: Composite utility poles can be manufactured in various colors, including wood-like effects, to blend into different environments. Modular pole systems can be quickly assembled in emergency situations.
  12. Cost-effectiveness: In the long run, fiberglass utility poles are more sustainable, considering maintenance and installation costs, their total cost is lower than that of steel and aluminum poles.

What Are the Disadvantages of Fiberglass Utility Poles?

The disadvantages of fiberglass utility poles include:

  1. Higher Initial Cost: Compared to wooden poles, the initial cost of fiberglass poles is generally higher, which is a significant factor for utilities considering large-scale deployment.
  2. Difficulty in Repair: Once damaged, fiberglass poles may be more challenging to repair than materials like wood or steel.
  3. Poor Fire Resistance: While fiberglass poles are somewhat fire-resistant, they are not fireproof. Flame retardants can be applied to enhance their fire resistance, but this may require additional steps.
  4. Unproven Long-Term Use: Although fiberglass poles are expected to have a long lifespan, they do not have as long a history of use as traditional materials like wood, and thus, less long-term performance data is available.
  5. Potential for Corrosion: While generally corrosion-resistant, some resins used in the manufacturing process may become corroded over time, especially under certain environmental conditions.
  6. Manufacturing Complexity: The production of fiberglass poles can be more complex, requiring specialized equipment and processes such as pultrusion or filament winding, which can lead to higher costs.
  7. UV Degradation: Although modern fiberglass poles use UV inhibitors in the manufacturing process to extend their lifespan, exposure to UV light can still cause degradation over time. Poles installed in Hawaii in the 1960s were replaced after about 50 years due to UV exposure.
  8. Environmental Impact: Although fiberglass poles do not require chemical preservatives like wooden poles, the manufacturing process of fiberglass materials can impact the environment, and these poles are not as easily recyclable as other materials.

What Are the Color Options for Fiberglass Utility Poles?

The color of fiberglass utility poles can vary depending on the manufacturer’s products and customer requirements. Some of the colors mentioned in the provided materials include:

  • Standard colors are gray and black, but other colors are available upon request, including wood-like effects.
  • Available colors include yellow, orange, blue, green, red, purple, and white.

What Materials are Used in the Manufacture of Fiberglass Utility Poles?

The manufacturing materials for fiberglass utility poles, also known as fiber-reinforced composite (FRC) utility poles, include:

  1. Glass Fibers: This is the primary reinforcing material used in utility poles, providing strength and durability.
  2. Epoxy Resin: Used as the matrix material that bonds the glass fibers together, helping to enhance the structural integrity of the utility pole.
  3. Thermoplastic Outer Shell: Some utility poles have an outer shell made of thermoplastic to protect the load-bearing thermoset plastic from UV radiation and external impacts.
  4. Polymer Resin: Used in combination with reinforcing fibers to form the composite material. Resins can vary but typically include materials like vinyl ester or polyester.
  5. Additives: Various additives can be included in the composite material to enhance UV resistance, flame retardancy, and coloring.
  6. Foam Core: Some utility poles may contain an internal foam core that, when used in conjunction with the high tensile strength of the composite material,provides excellent performance under vertical and lateral loads.

How Do Fiberglass Utility Poles Compare to Wood, Steel, Concrete, and Aluminum Power Poles?

When comparing fiberglass utility poles with wood, steel, concrete, and aluminum utility poles, each material has its own set of advantages and disadvantages, making them suitable for different applications and environments.

Fiberglass Utility Poles

Advantages:

  • Lightweight, easy to transport and install.
  • Non-conductive, enhancing safety during installation and maintenance.
  • Resistant to corrosion, rot, UV radiation, water, and pests.
  • Long lifespan with minimal maintenance.
  • Environmentally friendly, with a lower carbon footprint than traditional utility poles.

Disadvantages:

  • Higher initial cost than wood.
  • Difficult to repair once damaged.
  • Poor fire resistance without additional treatment.

Wood Poles

Advantages:

  • Renewable, abundant resource, and low cost.
  • Easy to modify and retrofit using simple tools.
  • Good insulating properties.
  • Transportable to remote areas.

Disadvantages:

  • Prone to rot, pests, and woodpecker damage if not properly treated.
  • Can be destroyed by large wildlife.
  • May require environmentally impactful chemical treatments.

Steel Poles

Advantages:

  • High strength and durability.
  • Pest and rot resistant.
  • Low maintenance costs.
  • 100% recyclable.

Disadvantages:

  • Conductive, potentially posing safety risks.
  • Susceptible to corrosion if not properly protected.
  • Heavier than fiberglass, impacting transportation and installation.

Concrete Poles

Advantages:

  • Robust and uniform appearance.
  • Fire and ice resistant.
  • Long lifespan.

Disadvantages:

  • Very heavy, complicating logistics and installation.
  • May be difficult to repair.
  • Steel reinforcement may corrode, leading to failure.

Aluminum Poles

Advantages:

  • Known for their excellent strength and durability. They can withstand strong winds and light snow loads without bending or breaking, making them suitable for harsh weather conditions.
  • Lightweight, advantageous for applications such as backpacking where carrying lighter equipment is beneficial.
  • Corrosion-resistant, typically featuring protective coatings to reduce rust and extend lifespan.
  • Flexible, able to bend without breaking, beneficial in windy conditions.

Disadvantages:

  • While robust, aluminum poles can corrode over time if not maintained properly, especially in salty or humid environments. Aluminum poles are also more expensive than fiberglass poles.

What Are The Applications of Fiberglass Utility Poles?

According to the provided sources, fiberglass utility poles are widely used in various industries, especially in utilities and infrastructure projects.

  1. Power Distribution and Transmission: Fiberglass poles are extensively used in the power sector for distributing and transmitting electricity. They support transmission lines that carry electricity from power plants to substations, as well as distribution lines that deliver power from substations to homes and businesses.
  2. Telecommunications Infrastructure: These poles support telecommunications network infrastructures, including fiber optics. This is particularly relevant with the expansion of 5G networks, as 5G requires more antennas and coverage areas. The non-conductive nature of fiberglass makes it an ideal material for such applications.
  3. Lighting Applications: Fiberglass poles are used to support street lights and other lighting fixtures, providing necessary lighting for streets, parking lots, and outdoor areas. Their strength and resistance to environmental factors make them suitable for these applications.
  4. Marine and Coastal Applications: Fiberglass poles are increasingly used in marine and coastal environments due to their corrosion resistance and durability in harsh, salty air conditions.
  5. Supporting Solar Panels: In some cases, solar panels are mounted on utility poles to power auxiliary equipment, especially in locations where connecting to the grid is prohibitively expensive. This demonstrates the adaptability of utility poles to renewable energy technologies.
  6. Wind Energy: Fiberglass poles are used in wind power generation, particularly for horizontal-axis wind turbines. The lightweight, high strength, and flexibility of fiberglass poles are crucial for applications that require wind resistance, rain resistance, and offshore placement.
  7. Construction and Commercial Projects: The use of fiberglass rods is similar to that of fiberglass poles in construction, where they are used to reinforce load-bearing structures such as balconies in composites. They are also used to construct robust, lightweight scaffolding for commercial building projects.
  8. Emergency and Rapid Response Applications: Modular pole systems made of fiberglass can be quickly assembled in various lengths and strengths in emergency situations, providing options for immediate pole replacement, facilitating rapid deployment in disaster-affected areas.
  9. Environmental Monitoring: Fiberglass poles are used in meteorological stations and other environmental monitoring applications, where their non-conductive, corrosion-resistant, and durable properties are crucial.

Conclusion

As you can see, fiberglass utility poles are increasingly being used in various places and come in multiple types. For more information about fiberglass utility poles, please contact us, and we can provide a quote.
We offer various types of fiberglass utility poles, and you can request a quote for free.
