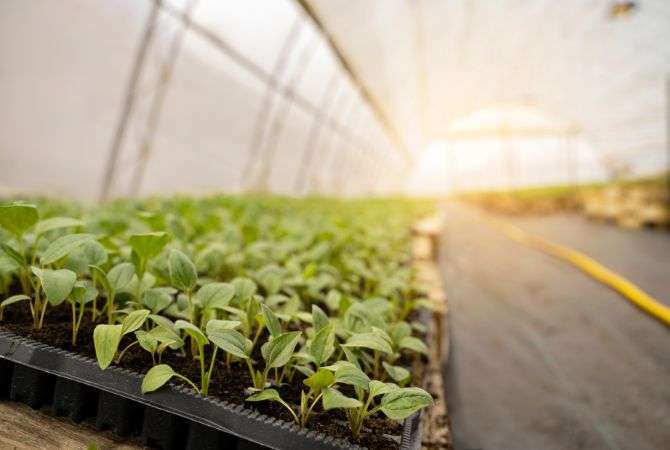

Fiberglass transparent greenhouse is made of transparent FRP skylight panel instead of glass. Practice has proved that the plants and crops in the transparent FRP greenhouse can significantly improve the yield and quality. In Europe, vegetables and flowers in greenhouse production show more than 10-20% annual increase.
Technical Specifications of FRP Greenhouse Panels
| Property | Standard Specification | Premium Specification |
|---|---|---|
| Panel Thickness | 0.8-1.2 mm | 1.2-1.5 mm |
| Light Transmission | 80-85% | 85-90% |
| UV Blocking | 98% of UV-B | 99% of UV-B |
| Impact Resistance | 200-250 J/m | 250-300 J/m |
| Service Temperature | -40°C to +120°C | -50°C to +140°C |
| Thermal Conductivity | 0.22 W/m·K | 0.16 W/m·K |
| Density | 1.4-1.5 g/cm³ | 1.5-1.6 g/cm³ |
| Tensile Strength | 55-65 MPa | 65-80 MPa |
| Flexural Strength | 90-110 MPa | 110-130 MPa |
| Fire Rating | Class C | Class B |
What Makes FRP Greenhouses Special?
The transparent FRP greenhouse uses fiberglass reinforced plastic panels that allow sunlight to pass through while providing excellent structural strength. Unlike traditional glass greenhouses, FRP greenhouses combine natural lighting with superior carrying capacity, which simplifies building structure design, saves materials, reduces costs, and makes construction more convenient.
Structural Forms of FRP Greenhouses
Single Slope Roof Structures
Single slope roof structures are commonly used in small greenhouses. The daylighting surface is made of fiberglass skylight panels. To reduce the supporting structure needed, these greenhouses use the inherent strength of fiberglass corrugated sheets, allowing the design to incorporate waveforms, curves, folded plate shapes, and trapezoidal sections.
Technical Parameters for Single Slope Designs:
- Recommended roof pitch: 15-30 degrees
- Maximum unsupported span: 3-4 meters
- Standard corrugation profile: 76mm pitch × 18mm depth
- Edge overlap: minimum 150mm
- Side overlap: 1-2 corrugations
Large-Scale Designs
For larger greenhouses, the load-bearing structure can be built using:
- Aluminum alloy (6063-T5 or 6061-T6 grade)
- Galvanized light steel (Z275 coating, minimum G90)
- Prestressed reinforced concrete members (minimum 30 MPa strength)
These materials enable the construction of larger FRP greenhouses with spans typically ranging from 6 to 12 meters. Some advanced designs, like those built in Germany, feature spans of up to 18 meters. These larger structures often use double-slope transparent FRP waveform section triple-hinged arch plates for the roof, with transparent FRP folded plates for side walls, supported by steel structural components.
Engineering Specifications for Large-Scale FRP Greenhouses:
- Frame spacing: 2.5-3.5 meters center-to-center
- Purlin spacing: 1.0-1.2 meters for standard loads
- Anchoring depth: minimum 600mm in soil or concrete footings
- Wind load design: 0.8-1.2 kPa (80-120 kg/m²)
- Snow load capacity: 0.75-1.5 kPa (75-150 kg/m²)
- Seismic design category: B-D depending on location
Material Composition of FRP Panels
High-quality FRP greenhouse panels consist of:
- Glass fiber reinforcement (25-30% by weight)
- Polyester or vinyl ester resin matrix
- UV-stabilizing additives (2-3%)
- Surface gel coat (0.1-0.15mm thickness)
- Optional fire-retardant additives
- Anti-yellowing compounds
Advantages of FRP Greenhouse Panels
Light Transmission Properties
FRP panels allow 80-90% of sunlight to pass through while diffusing the light evenly throughout the greenhouse. This diffusion eliminates harsh shadows and creates ideal growing conditions for plants.
Light Diffusion Measurements:
- Haze factor: 70-85%
- Photosynthetically Active Radiation (PAR) transmission: 78-88%
- Spectral distribution: Balanced across 400-700nm range
- Far-red (700-750nm) transmission: 75-85% (important for flowering)
Weather Resistance
FRP panels offer excellent resistance to various weather conditions:
- Wind resistance up to 140 km/h (90 mph) when properly installed
- Hail resistance to 25mm (1 inch) diameter hailstones without penetration
- Snow load capacity of 150-200 kg/m² with proper design
- UV resistance that prevents degradation for 15+ years
- Salt spray resistance: 1000+ hours in ASTM B117 test
Temperature Control
The thermal properties of FRP panels help maintain stable growing temperatures:
- R-value: 0.25-0.35 m²·K/W (compared to 0.17 for single glass)
- U-value: 3.0-4.0 W/m²·K (compared to 5.8 for single glass)
- Heat retention: 15-25% better than single glass
- Temperature gradient: 2-3°C variation per meter of height
- Condensation resistance: Dew point typically 4-6°C below surface temperature
Installation of FRP Greenhouses
Installing an FRP greenhouse is significantly easier than traditional glass structures:
- Panel weight: 1.8-2.5 kg/m² (compared to 10-12 kg/m² for glass)
- Fewer supporting structures needed due to panel strength
- Special tools not required for most installations
- 40% faster installation time compared to glass
Fastening Specifications:
- Recommended fasteners: 304 or 316 stainless steel
- Fastener spacing: 300-400mm along purlins
- Washer type: EPDM with minimum 25mm diameter
- Pre-drilling hole diameter: 2mm larger than fastener diameter
- Torque specification: 2.5-3.5 N·m (to prevent over-tightening)
A typical installation process includes:
- Preparing a level foundation or base
- Assembling the framework using aluminum or steel components
- Attaching the FRP panels using specialized fasteners with neoprene washers
- Installing ventilation systems and doors
- Adding optional climate control components
Real-World Performance Data
Farmers who have switched to FRP greenhouses report impressive results:
| Crop Type | Yield Improvement | Growing Season Extension | Specific Benefits |
|---|---|---|---|
| Tomatoes | 25-30% | 6-8 weeks | Brix content increased by 0.5-0.8 points |
| Lettuce | 35-40% | 8-10 weeks | Nitrate content reduced by 15-20% |
| Flowers | 30-35% | 6-9 weeks | Stem length increased by 10-15% |
| Peppers | 20-25% | 5-7 weeks | Capsaicin content increased by 8-12% |
| Herbs | 40-45% | Year-round production | Essential oil yield up by 15-20% |
Climate Control Integration
Modern FRP greenhouses can integrate advanced climate control systems:
Ventilation Parameters:
- Recommended ventilation area: 15-20% of floor area
- Ridge vent width: 40-60cm for optimal air flow
- Side wall vent height: 1.5-2.0m for maximum efficiency
- Air exchange rate: 1-2 complete volumes per hour
- Fan capacity calculation: 0.04 m³/s per square meter of floor area
Heating System Integration:
- Under-bench heating pipes: 32-40mm diameter, spaced 30-40cm apart
- Overhead radiant heating: 2.5-3.5 meters above growing surface
- Temperature zoning: 2-3 separate zones for optimal plant development
- Heat requirement calculation: 20-30 W/m² per °C of temperature difference
Maintenance Requirements
FRP greenhouses require minimal maintenance compared to other greenhouse types:
- Clean panels 1-2 times annually using mild soap solution (pH 6-8)
- Inspection schedule: quarterly visual checks of fasteners and seals
- Recommended cleaning pressure: less than 100 bar (1450 psi)
- Check framework for corrosion or damage yearly
- Apply UV-protective coating (200-250 g/m²) every 8-10 years if needed
Lifespan and Degradation Parameters
- Annual light transmission reduction: approximately 1% per year
- Color shift: Delta E of 2-3 units after 5 years exposure
- Yellowing index increase: 2-3 units per year
- Impact strength reduction: 5-7% per decade
- Expected service life: 20-25 years with proper maintenance
Cost Considerations
While the initial investment in an FRP greenhouse may be 10-15% higher than basic polycarbonate structures, the long-term benefits make it economically advantageous:
- Initial material cost: $18-25 per square meter for panels
- Framework cost: $35-50 per square meter
- Installation labor: 3-4 man-hours per 10 square meters
- Annual operating cost: 15-20% lower than glass greenhouses
- Return on investment period: typically 3-5 years based on yield improvements
Frequently Asked Questions
How do FRP panels compare to glass in terms of durability?
FRP panels are 10 times more impact-resistant than glass (200-250 J/m vs. 20-30 J/m) and will not shatter upon impact. They can withstand hail, high winds, and snow loads that would damage glass panels.
Are FRP greenhouses suitable for all climates?
Yes, FRP greenhouses can be designed for various climates. In cold regions (below -20°C), double-layer panels or additional insulation may be recommended. In hot regions (above 40°C), additional ventilation systems can be integrated.
Can I build an FRP greenhouse myself?
Yes, smaller FRP greenhouse kits are designed for DIY installation with basic tools. Standard greenhouse kits cover 20-40 square meters and can be assembled by 2 people in 2-3 days.
How do plants perform in FRP greenhouses compared to glass greenhouses?
Many growers report better plant performance in FRP greenhouses due to the diffused light, which reaches plants more evenly and reduces leaf burn. Studies show 10-20% higher yields in FRP greenhouses compared to traditional glass structures.
What is the expected lifespan of an FRP greenhouse?
With proper maintenance, an FRP greenhouse can last 20+ years. The panels may begin to show some yellowing after 10-15 years (measured as 10-15 units on the yellowness index) but can be treated with UV-protective coatings to extend their lifespan.
How does FRP respond to fire?
Standard FRP panels have a Class C fire rating (ASTM E84), with flame spread index of 200-225 and smoke developed index of 450-500. Fire-retardant formulations can achieve Class B ratings (flame spread index <75).
Conclusion
FRP greenhouses represent an excellent balance of performance, durability, and value for both hobbyist and commercial growers. Their proven ability to increase yields while offering superior structural properties makes them an increasingly popular choice in modern agriculture.
With proper design and installation, an FRP greenhouse provides an ideal growing environment that can significantly improve crop production and quality while offering long-term economic and operational advantages over traditional greenhouse materials.
